jgoodPat's Custom Models 44" Tiger MothBuild16-Jul-06 19:15
Views : 1709

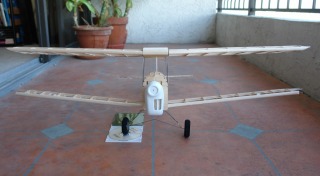

The top dihedral (minus inter-plane struts) as now set for a more scale appearance. Hope the flying characteristics aren't negatively affected.
jgoodPat's Custom Models 44" Tiger MothBuild16-Jul-06 19:12
Views : 1752

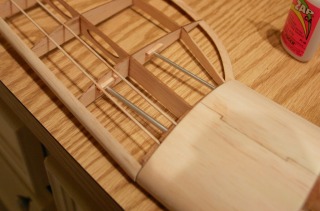

Here's how the dihedral is set in place now that we can't use the laser cut holes. 1/8'' balsa is used to hold the tubes at the correct level. Should be strong enough I think (stronger that the original holes, I would think).
Hangar Aircraft Category Date Preview
jgoodPat's Custom Models 44" Tiger MothBuild16-Jul-06 19:11
Views : 1824

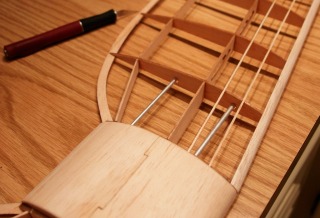

Showing the Al tubes which now have to be modified to seat higher on the outer rib, setting the top wing dihedral.
jgoodPat's Custom Models 44" Tiger MothBuild16-Jul-06 19:10
Views : 1741

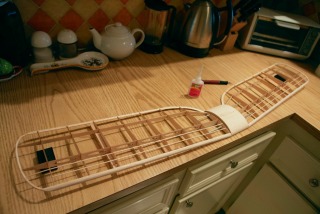

Setting the dihedral to a lower amount (about 2.3 degrees).
