Hangar Aircraft Category Date Preview
jgoodPat's Custom Models 44" Tiger MothBuild23-Jul-06 14:37
Views : 1914

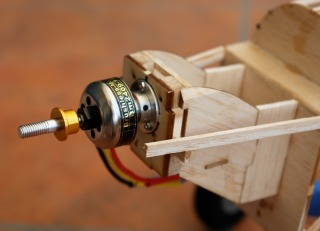

Showing the motor bolted to the mount.
jgoodPat's Custom Models 44" Tiger MothBuild23-Jul-06 14:36
Views : 1716

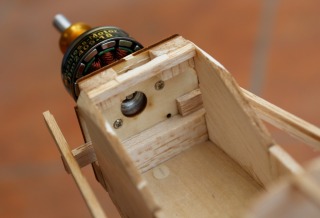

The rear of the mount.
Hangar Aircraft Category Date Preview
jgoodPat's Custom Models 44" Tiger MothBuild23-Jul-06 14:36
Views : 1715

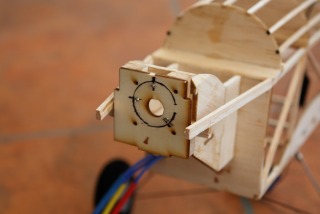

Here is the motor mount. The motor bolts onto the mount with 3 small bolts/nuts. The side members are not supporting the motor at all, they are just for the top cowl to rest on.
jgoodPat's Custom Models 44" Tiger MothBuild23-Jul-06 14:33
Views : 1729

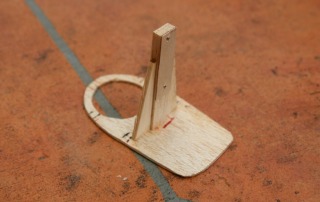

This is the nose cowl mount. The plastic nose cowl mounts to the front of this, and then this part is bolted to bottom of the motor mount.
