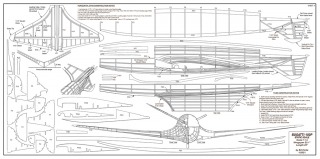

| edtherenderman | Scratch Built Bugatti 100P | Build | 04-Jan-21 07:57 |  | | Views : 2388 | | Last week and this weekend, I used render options in Blender.org to produce all the outline images, which I then brought into PhotoShop to create the build plan. This is sheet 1 of 2. This plan will fit on six 8.5” x 11” sheets of paper so I can print them out on a printer and tape them together. |
| edtherenderman | Scratch Built Bugatti 100P | Build | 04-Jan-21 07:55 |  | | Views : 1316 | | Been working on the Bugatti 100P plans while waiting for paint to come in for the XP-67. I spent five straight days over Christmas break creating the framework of the aircraft in Blender.org. Here is the results which I will use to create the scale plans. Everything in the model is scaled virtually to 1/14 so all wood thickness will end up as standard sizes (1/16” x 1/16” stringers, 1/16” sheet, 1/32” Sheet, etc.) |
|
|
